Dualflow for Air & Hydraulic Oil SHHA 8300
-
The Structure of Standard Rotary JointsMonoflow for WaterStationary Dualflow for WaterStationary and Rotating Dualflow for Water , Flange TypeThe Structure of Special Rotary Joints for WaterSpecial Monoflow for WaterSpecial Stationary Dualflow for WaterSpecial Rotating Dualflow for WaterSub-Standard Rotay JointsSub-Standard Monoflow for WaterSub-Standard Stationary Dualflow for WaterSub-Standard Rotating Dualflow for WaterRotary Joints for Steam & Hot OilMonoflow for Steam & Hot Oil, Flange TypeRotating Dualflow for Steam & Hot OilStationary Dualflow for Steam & Hot OilStationary and Rotating Dualflow, Flange Type, for Steam & Hot OilRotary Joints for Steel IndustryRotary Joints for Steel IndustryRotary Joints for Steel Industry4 Port for Air & Hydraulic Oil for Machine ToolsMulti-Passage Rotary Joints for Air & Hydraulic OilMonoflow for Air & Hydraulic OilDualflow for Air & Hydraulic OilDualflow for Air & Hydraulic Oil SHHA 83003 Port for Air & Hydraulic Oil4 Port for Air & Hydraulic Oil, SHHA 8500Non-Seal Rotary JointsNon-Seal Rotary JointsAround Type Rotary JointsMonoflow for Air & Hydraulic Oil, 9000 SeriesDualflow for Air & Hydraulic Oil, 9100 Series
에어 & 유압용 복식 8300 시리즈
- 에어 & 유압용 복식 8300 시리즈 특징
- 세한 SHHA 8300 Series는 사용조건에 따라 저압부터 고압까지, 저속에서 고속용까지 혼합사용이 가능하여 각종 산업기계 특성에 맞게 사용이 가능한 로타리조인트입니다.
| Operating Data | |||
|---|---|---|---|
| MAX PRESSURE | MAX TEMPERATURE | MAX SPEED | MEDIA |
| 10 kgf/㎠ | 80℃ | 100 RPM | AIR, WATER |

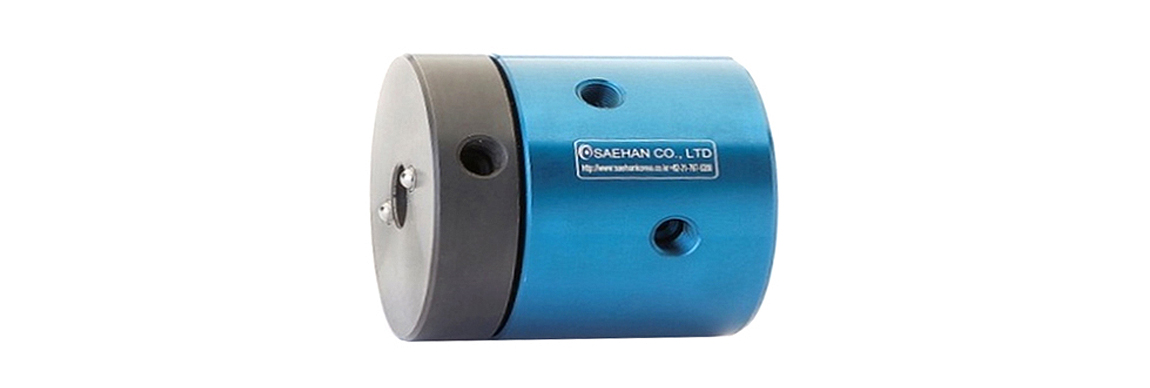

제품사진

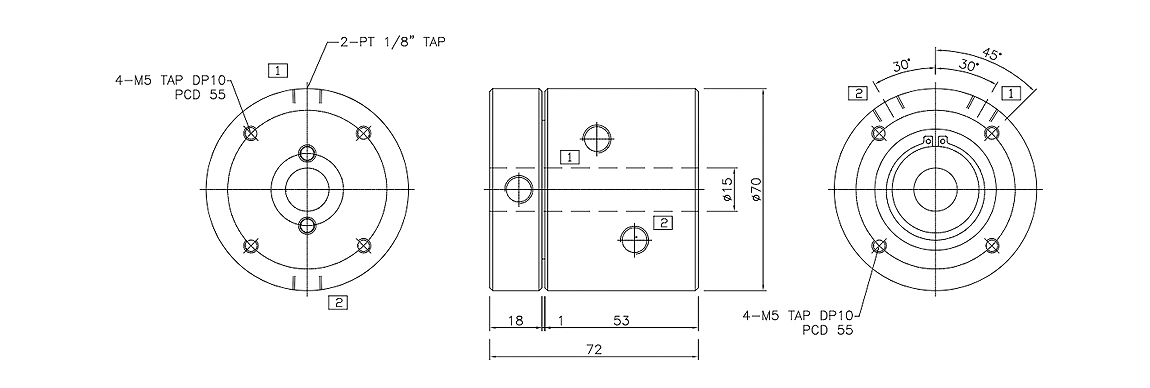

제품도면
